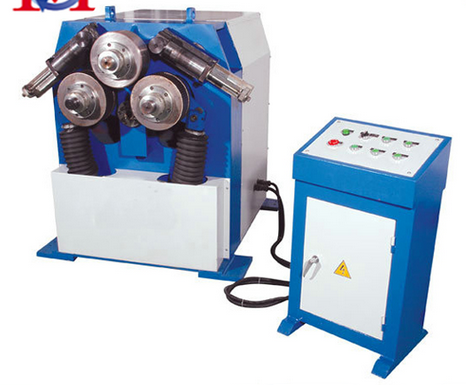

W24Y series section bending machine


Main features:
1. The machine is an efficient processing machine which is specially designed to bend l Esteel, flat bean, solid bar, etc.
2. It has three working rollers, the positions of the two bottom rollers can be adjusted along the arc.
3. Assisting rollers are installed on both sides of the machine to control the work quality in the bending of proportional steel sections.
4. The machine is reliable to operate with various functions and is an ideal bending machine thar's adjustable and able to deal with different types of materials and specifications only by recombining the die settings.
5. This removes the need to change dies. The machine offers low cost with flexibility and reliability.

Model Unit W24Y-400 W24Y-500 W24Y-1000
Yield limit mm <245 <245 <245
Min. bending dia.     (Angle steel leg out) mm 200-400 300-400 400-600
Capacity
L40X4 L50X5 L75X7
Overall size  L.mm 1000 1200 1320
W.mm 750 750 950
H.mm 1350 1580 1270
N.W/G.W kg 500/600 900/1030 2500/2750
Main motor kw 2.2/1.5 2.2/2.2 4/2.2










Model Capacity Min. rolling Dia.

W24Y--400 ANGLE IRON  40X40X4  280MM


SQUARE PIPE 25X25X2  350


ROUND PIPE 2"(T=3)  500


FLAT STEEL  40X6  350


SQUARE  STEEL 15X15  350






W24Y-500 ANGLE STEEL 50X50X5 350


SQUARE PIPE 30X30X2.5  350


ROUND PIPE  2"(T=3)  450


FLAT STEEL 50X6  350


SQUARE STEEL 18X18  350






W24Y--1000 ANGLE STEEL: MAX: 75X75X8 800


                            MIN.30X30X3 350







SQUARE PIPE: MAX. 70X70X5 1500


                          MIN.25X25X2 350







RECTANGULAR PIPE        MAX. 80X25X3  800


MIN. 25X15X2 350







ROUND PIPE  MAX. 100X2.5  1200


                          MIN. 15X1 350







FLAT STEEL: MAX. 80X16 600


                         MIN. 30X8  350







SQUARE STEEL: MAX.40X40 800


                            MIN.15X15  350
